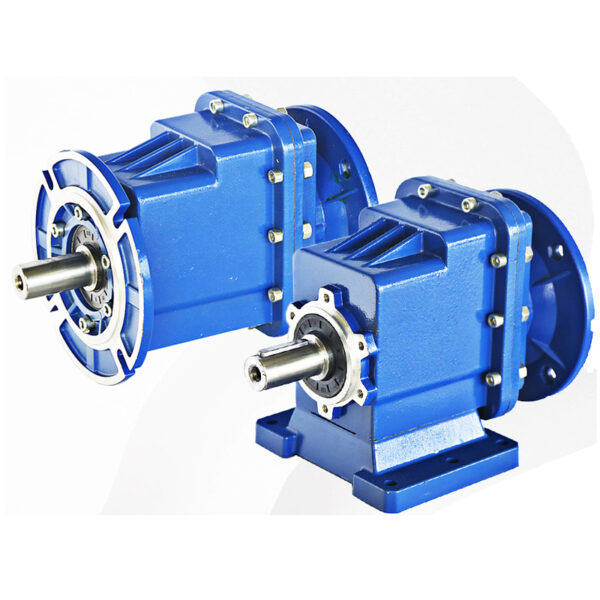

- RC series helical gearbox is a new generation product designed based on the modular system,
- it has 4 types(01-02-03-04),power from 0.12kw to 4.0kw, ratio from 3.66 to 58.09, Max torque from 120Nm to 500Nm.
- Applications: textile, food, beverage, tobacco, packaging, logistics, ceramics, industrial, etc.
| Housing: | Aluminum Alloys |
| Gears: | Hardened Helical Gears |
| Input Configurations: | Hollow Shaft with IEC Normalized Motor Flange Solid Shaft Input |
| Applicable Motors: | IEC-normalized Motors and Brake Motors Explosion-proof Motors Inverter Motors Servo Motors |
| Output Configurations: | Solid Shaft with B5 Output Flange Solid Shaft with B14 Output Flange |

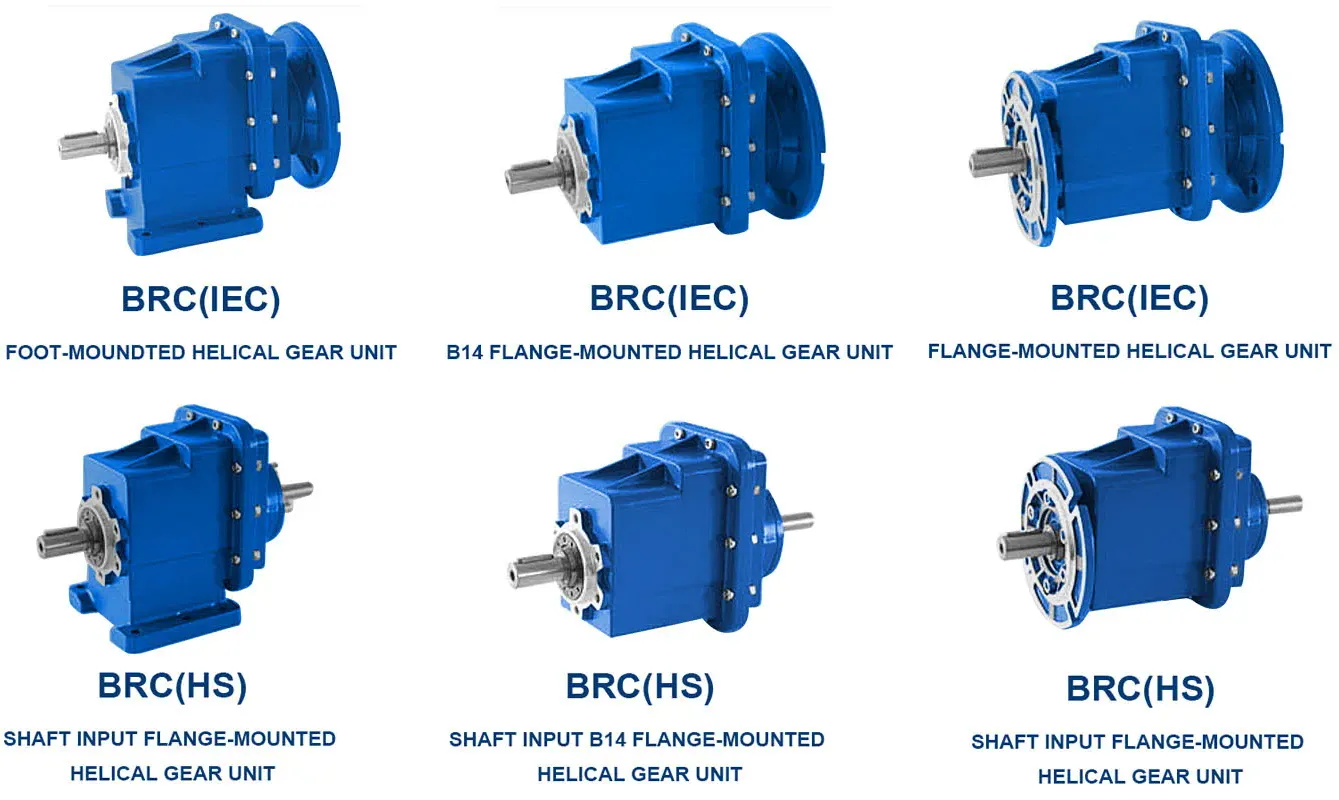

| Models: | RC(Foot-mounted): RC01,RC02,RC03,RC04 RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04 RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04 |
| Installation: | Foot-mounted B5 Flange-mounted B14 Flange-mounted |
| Lubrication: | Oil-bath and Splash Lubrication |
| Cooling: | Natural Cooling |
