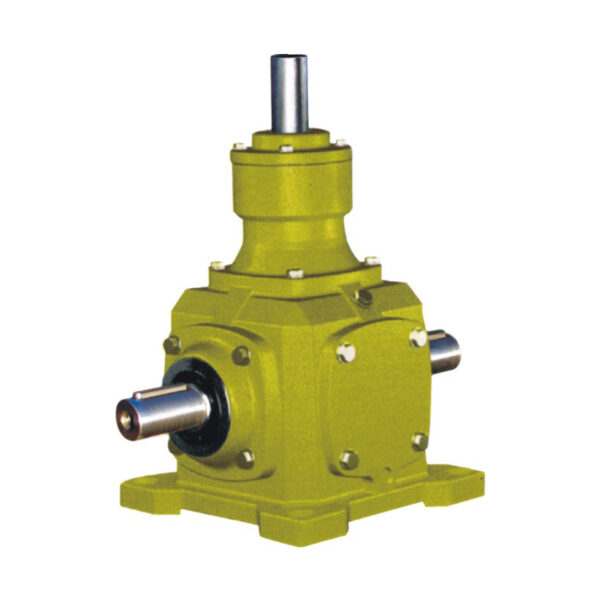

T series spiral bevel gear transmission box has advantages of low noise, low vibration and high endurance.
speed ratio 1:1, 1.5:1, 2.5:1, 3:1, 4:1, 5:1
Average efficiency is 98%.
Available in single shaft, double horizontal axis, single vertical axis and double vertical axis.
The spiral bevel gear can be operated in forward and reverse directions, with low speed or high speed transmission.
The T series commutator has a steering function that changes the output shaft as the direction of rotation of the input shaft changes.
Pay attention to the speed relationship when selecting the input shaft (no speed retio at 1:1).
| Technical data | |
| Shell material | Cast iron / ductile iron |
| Shell hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Gear surface hardness | HRC58 ° ~ 62 ° |
| Gear core hardness | HRC33 ~ 40 |
| Input / output shaft material | 42CrMo alloy steel |
| Input / output shaft hardness | HRC25 ~ 30 |
| Gear machining accuracy | Precision grinding, level 6 ~ 5 |
| lubricating oil | GB L-CKC220-460, Shell withstand voltage 220-460 |
| Heat treatment | Tempering, carburizing, quenching, etc. |
| Efficiency | 98% |
| Noise (maximum) | 60 ~ 68dB |
| vibration | ≤20µm |
| Recoil | ≤20Arcmin |
| Bearing brand | Chinese brand bearings, HRB / LYC / ZWZ / C & U. Or other brands requested, SKF, FAG, INA, NSK. |
